An Overview of Cold-Formed Steel Structures

Helen Chen, Ph.D., PE
Senior Cold-Formed Steel Engineer
American Iron and Steel Institute
Washington, DC

Course Outline

Cold-formed steel has been widely used in building construction, from residential houses to industrial buildings. This two-hour course discusses the manufacturing process of cold-formed steel, the fundamental theories of cold-formed steel design, cold-formed steel applications in today's construction market, and connection methods. This course includes a multiple-choice quiz at the end, which is designed to enhance the understanding of course materials.

Learning Objective

At the conclusion of this course, the student will:

Course Content

Cold-formed steel offers versatility in building because of its lightweight and ease of handling and use. Compared to wood, cold-formed steel offers several advantages: high strength to weight ratio, noncombustibilty and termite resistance. Did you know that cold-formed steel represents over 45 percent of the steel construction market, and this share is increasing?

What is Cold-Formed Steel?

In building construction, there are primarily two types of structural steel: hot-rolled steel shapes and cold-formed steel shapes. The hot-rolled steel shapes are formed at elevated temperatures while the cold-formed steel shapes are formed at room temperature. Cold-formed steel structural members are shapes commonly manufactured from steel plate, sheet or strip material. The manufacturing process involves forming the material by either press-braking or cold roll-forming to achieve the desired shape. Examples of the cold-formed steel are corrugated steel roof and floor decks, steel wall panels, storage racks and steel wall studs.

Press-braking is often used for production of small quantity of simple shapes. Cold roll-forming is the most widely used method for production of roof, floor and wall panels. It is also used for the production of structural components such as Cees, Zees, and hat sections. Sections can usually be made from sheet up to 60 inches (1.5m) wide and from coils more than 3,000 feet (1,000m) long.

During cold roll-forming, sheet stock is fed longitudinally through a series of rolls, each of which works the sheet progressively until it reaches the desired shape (Figures 1 and 2). A simple section may require as few as six pairs of roll, but a complex shape can require as many as 24 to 30. The thickness of material that can be formed generally ranges between 0.004 (0.10mm) up to 0.312 inches (7.7mm), although heavy duty cold forming mills can handle steel up to ¾ of an inch (19mm) thick.

Figure 1

Figure 2

Effect of Cold Work

When steel is formed by press-braking or cold rolled-forming, there is a change in the mechanical properties of the material by virtue of the cold working of the metal.

When a steel section is cold-formed from flat sheet or strip, the yield strength, and to a lesser extent the ultimate strength, is increased as a result of this cold working, particularly in the bends of the section.

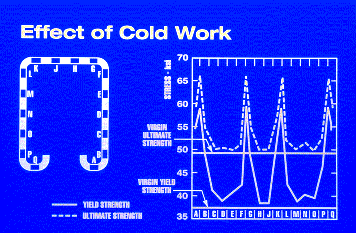

Figure 3

The right part of Figure 3 shows the developed centerline of the section and the variation of yield and ultimate strength along the centerline. One can see that these strengths are unaffected in the three flat portions where little cold work has taken place and the strength is much higher in the corners, which have been strongly cold-worked in the forming process.

Since cold work produced during forming increases the strength of the steel, it permits the designer to treat the formed steel as a stronger material than the original unformed steel. Often, it is possible to take a weighted average of the post-forming strength of the cross section and use this higher figure as the overall strength of the steel.

A shape that is cold worked to a higher degree will have a higher yield strength, which may make it more appropriate for certain applications. Sometimes cold work is added by overbending and straightening. The end result is that a more complex shape may have higher strength than a less complex shape. Other factors that can affect cold working include roll pressure, corner radius and the properties of the steel.

Depending on the type of cold-forming and the thickness of the steel, the amount of strength increase could reach 20% to 50%. However, the ductility of the steel is reduced as result of cold-forming process.

Properties of Cold-Formed Steel

Generally, the grades of carbon steel and high strength low alloy steel used for cold-formed steel products are characterized by two main properties: the yield point and the tensile strength. Other important properties are ductility, hardness and weldability.

The yield point of the steels commonly used for cold-forming ranges from 33 to 55 ksi (230 to 380 MPa), and may be higher. Tensile strength and ductility are important because of the way they relate to formability, and because of the local deformation demands of bolted and other types of connection. In members that include bolted connection or that, because of special design, may be subject to high stress concentrations, the tensile strength often must be taken into account. The ratio of tensile strength to yield strength for cold-formed steels commonly ranges from 1.2 to 1.8. However, steels with a lower ratio can be used for specific applications.

Cold-Formed Steel Types


Figure 4

There are two major types of cold-formed steel products: structural shapes and panels. Of the former, there are a variety of shapes produced. They include open sections, closed sections, and built-up sections, such as Cee sections (also called lipped channels), zee sections, double channel I beams with stiffened flanges, hat sections with and without intermediate stiffeners, box sections, U sections and others. These are used in buildings for such structural functions as eave struts, purlins, and girts as well as joists and studs and other components.

Generally, the depth of cold-formed individual framing members range from 2 to 12 inches (50 to 300mm) and the thickness of material ranges from 0.035 to about ¼ inches (0.90 to 6.4mm)

Cold-Formed Steel vs. Hot-Rolled Steel

The differences between cold-formed and hot-rolled steel are not just in the thickness and the shapes. Since cold-formed steel members are formed at room temperature, the material becomes harder and stronger. Its lightweight makes it easier and more economical to mass-produce, transport and install.

One of the main differences between designing with cold-formed steel shapes and with hot-rolled structural shapes is that with the hot-rolled, one is primarily concerned about two types of instability: column buckling and lateral buckling of unbraced beams. The dimensions of hot-rolled shapes are such that local buckling of individual constituent elements generally will not occur before yielding.

This is not the case with cold-formed members. Here local buckling must also be considered because, in most cases, the material used is thin relative to its width. This means that the individual flat, or plate, elements of the section often have width to thickness ratios that will permit buckling at stresses well below the yield point.

Local Buckling

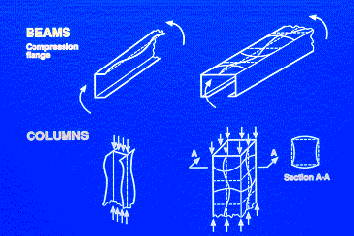

Figure 5

Local buckling, for such plate elements, is not the same as overall beam or column buckling. Although the element begins to deflect out of its original straight or plane shape, it does not fail when the initial buckling stress is reached. On the contrary it can resist increasing compression stresses often well in excess of those at which local buckling first appears.

In this case, the member develops out-of-plane deformations which are shown (highly exaggerated) for these beams and columns, but they will continue to carry increasing load. This is known as their post-buckling strength.

There are two types of thin, compressed sheet elements. One type is stiffened by other components along both longitudinal edges. Such elements are called stiffened compression elements, and you see them in the compression flange of the C-section beam, or in all four faces of the box column. The other type is called unstiffened compression elements that are stiffened only along one of the two longitudinal edges. The other edges remain free. These elements appear in the compression flange of the channel section beam, and in all flanges of the I-section column. The behavior of these two types of elements is similar, though not identical.

Effective Width and Effective Properties

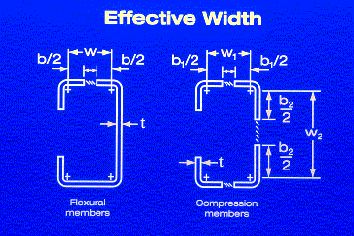

The concept of effective width is the key to the design of cold-formed steel. Considering the element as the compression flange of some member (see Figure 6), the total compressive force is the area under this stress distribution curve, times the thickness of the element. What is needed in design is only this total compressive force. It is convenient to replace the actual variable stress distribution with a fictitious uniform stress distribution, of the same intensity of the edge stress, f, as in the real element as indicated by the dotted lines.

Figure 6

Figure 7

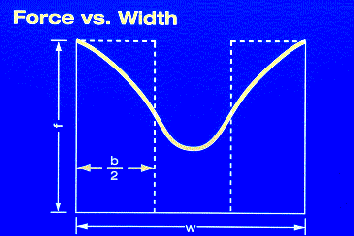

In order to get the same total compression force in the fictitious (dotted) as in the real (solid) distribution, the areas under the two must be equal. This means adjusting the width of each of the two fictitious rectangles, b/2, until the combined area of the two rectangles is equal to that under the solid curve. This width is known as the effective width, b.

Once this effective width, b, is known, structural members, such as beams or columns, can be designed simply by replacing the real width, w, of each compression element by its effective width, b. This is shown for several frequently used shapes in Figure 7. To the left is a flexural member, to the right a compression member. The two effective portions of the compression elements are shown solid, and the portions considered removed are dotted. For each element, the total effective width is, of course, b (or b1).

Then, effective section properties, such as area, section modulus, and moment of inertia, can be calculated by using for each compression element its effective width, b, instead of its real width, w.

Effective Width Equation

The basic equation for the effective width, b, are the result of very extensive research, and are shown below:

Figure 8

The effective width is calculated by multiplying the actual width, w, by a reduction factor r, when the slenderness parameter l is greater than 0.673. As l increases the effective width decreases.

Figure 9

It is seen that the slenderness parameter, l, depends on the ratio of actual width to thickness (w/t), the plate buckling coefficient, k, and the maximum edge stress, f. l increases with the increasing edge stress, f, and also with increasing flat width-to-thickness ratio, w/t.


Stiffened vs. Unstiffened Sections

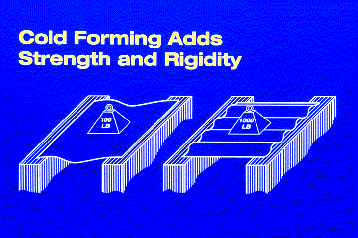

Figure 10

A thin, flat sheet of steel cannot support much weight, but if it is formed into a corrugated sheet, the folds act as stiffeners, and can increase the strength of the same sheet many times over.

  The load-carrying capacity of the compression components in beams or columns can be increased significantly by the use of the edge stiffeners or intermediate stiffeners. The lip on the flanges of C-shaped steel studs is an example of edge stiffener.

When a compression component has stiffeners on along two parallel edges, it is considered as a fully stiffened or partially stiffened section depending on the stiffness of the stiffeners. When a compression component has the stiffener along one edge only, it is considered as an unstiffened section. The flanges of C-shaped steel studs are examples of fully or partially stiffened sections while the flanges of U-shaped steel track are examples of unstiffened sections.

Applications of Cold-Formed Steel

Cold-formed shapes can be used for entire buildings and for complete roof, floor and wall systems. They can also be used as individual framing members such as studs, joists and truss members.

From structural standpoint, the cold-formed steel can serve as both primary structures and secondary structures. An example of the cold-formed steel used as primary structures is the steel stud load-bearing wall. Steel studs providing the lateral support to exterior wall finish are usually secondary structures since they rely on the primary structure for support.

Regular Decks

Floor decks, roof decks and wall systems are the prime applications for cold-formed steel in panel form. These are made in both simple, or single-component types, as well as more complex units made up of several elements.

Permanent metal deck forms are fabricated from lightweight steel in thickness that vary from 0.020 to 0.075 inches (0.50 to 1.9mm) and depths of 2, 3, and 4-1/2 inches (51, 76 and 115mm), depending on slab thickness and design span. Permanent metal deck forms are usually galvanized.

Permanent metal deck forms are designed to support the wet weight of concrete, a construction load, reinforcing steel and the weight of the form itself.

Composite metal deck forms also provide the tension reinforcement for the slab. The embossments provide interlock between the deck and the concrete. The ribs are generally trapezoidal in shape for roof and floor deck applications, although they may vary by manufacturer. The panels may be punched with a pattern of holes to absorb sound.

Multi-Function Deck

Some deck systems use cellular cold-formed steel shapes to permit lightweight floors that reduce deadweight. These floor systems can provide electrical power, communications and data cable distribution as well as heating and air conditioning ducts.

This eliminates separate space requirements in floors, walls and ceilings for ductwork or conduit systems. The modular construction possible with cold-formed steel sections permits access to many points in the deck, making it easy to rearrange wiring or ventilation outlets.

Standing Seam Metal Roof

Figure 11

The cold-formed steel standing seam roof was introduced in 1969 as a new concept in roofing. Today, there is over a billion square feet of standing seam roofing installed.

The system consists of factory or job-site roll-formed panels with elevated, field-secured seams and concealed clips that fasten the panels to the structure and permit the panels to accommodate thermal expansion and contraction.

There are two basic types of standing seam roof systems:

The first type is structural standing seam roof panels that provide a water-tight barrier and are generally installed on low-slope applications, with a minimum slope of about ¼ in 12. These panels provide their own support, usually spanning about five feet (1.5m) between purlins. The system can also be installed over existing flat roofs by using a sloped sub-assembly system made of light steel structurals. The "attic" created by the sub-assembly affords a convenient area of adding insulation.

Leaving the old roof in place means avoiding the release of potentially hazardous materials into the environment and eliminating the cost of disposing of the existing roof. Most importantly, a new metal roof can be installed with little or no interruption to the building’s occupants. The preferred material for the roof panel is galvanized or aluminum-zinc coated sheet steel.

The second type is architectural standing seam roof panels. They are generally used on roofs with slopes of 3 to 12 or greater, and provide water protection as well as aesthetic value. These panels usually require some form of decking for support. The preferred materials for architectural standing seam roof panels are prepainted galvanized and prepainted aluminum-zinc coated sheet steel. The architectural possibilities provided by the variety of colors and patterns are limitless.

Insulated Panel

Cold-formed steel panels are also used for enclosing the building to keep out the weather and keep in the heat. There are now available cold-formed steel panels with insulation already incorporated in the construction of the panel. Some of these configurations make use of foamed in place rigid urethanes sandwiched in between the steel. Others use different types of insulation, the more conventional being fiberglass installed in the panels.

Wall Panels

There are wide varieties of panel systems. The simple, single element is available primarily as a ribbed sheet; formed, coated and otherwise modified to fulfill special functions that may be required.

Panels for walls may be as straightforward as a painted ribbed panel or as interesting as a porcelain or metal and glass curtain wall system. In many metal buildings, the wall panel is similar to the ribbed roof panel, with either wide or narrow ribs, and is painted or aluminum coated for long service life. The same tongue and groove lap or standing seam joints is employed here.

More sophisticated systems are made from cold-formed steel for curtain wall systems of buildings. These may include varying amounts of glass, either tinted or clear, complex or simple trim work and clean expanses of sheet steel. There are many advantages in using these cold-formed steel curtain walls. They include high strength and lightweight, and modular installation for lower construction costs. They permit a beautiful surface, available in a variety of coatings, textures and colors to meet any architectural concept. Like other panels, these may have insulation pre-installed. The curtain wall module may span several window bays or several floors, to minimize installation time.

Exterior Wall

Metal stud framing is widely used as the structural support for the exterior brick veneer and exterior insulation finishing system (EIFS).

Building Interior Partitions

Cold-formed steel framing is also used for interior walls and partitions that provide flexibility in layout of interior spaces as well as the freedom to relocate and redesign.

The main advantages of these systems are strength, durability, noncombustibility, and a wide choice of coatings, including porcelain, vinyls and paints.

Residential Uses

Figure 12

Another area in construction where cold-formed steel is finding wider application is in residential steel framing systems. Here, steel is used instead of lumber for joists, studs and other structural components of residential construction.

The steel components are usually of Cee, I or hat shape and galvanized or painted. They can be cut to the required length by the manufacturers, thereby minimizing construction labor.

Culvert

Cold-formed, corrugated steel pipe is used for everything from storm sewers to utility tunnels, and simple tunnels under roadways to huge bridge structures. The corrugated steel pipe can be installed in a cut, covered with filled and topped out with a roadway to form an inexpensive and durable bridge.

Racks

Figure 13

Material handling and storage specialists rely on cold-formed steel racks and rack systems to efficiently store and retrieve everything from groceries to heavy steel bars. New rack systems are so huge they fill entire buildings and have stacker cranes that rise as high as 100 feet (30m).

Pre-Engineered Buildings

Figure 14

There is a whole industry built around cold-formed steel building components. Manufacturers of pre-engineered metal building provide custom designed structures for anything from a small tool shed to a range of sophisticated structures such as schools, churches and complex manufacturing facilities.

Other Applications

Cold-formed steel is also used for a variety of building products such as doors, windows. In highway construction, cold-formed steel is also used for guard rails, median and glare barriers, permanent bridge deck forms, signs and other components.

Advantages of Cold-Formed Steel

Cold-formed steel offers many advantages, including: ease of prefabrication and mass production, uniformity of quality, low weight, economy of transportation and handling, and quick and simple erection or installation.

The obvious benefit of permanent metal decks forms over the conventional wood form system is a significantly reduced construction cost and schedule since the metal forms remain in place as opposed to the wood forms which must be stripped. In addition, permanent forms provide a safe working platform for the subsequent operations of shear stud placement and re-bar installation.

Connections

The main forms of connections of cold-formed steel in construction are mechanical fasteners, welding and seams of various designs.

Seam Types

Seams are used on roof decks, corrugated steel pipe and in other products. Possible seam designs include the single lock seam, grooved single lock seam and the batten seam. Others include the double lock standing seams, the standing seam and double lock seam.

Bolts

With mechanical fasteners, and particularly bolted connections, the ratio of bolt diameter to plate thickness is usually much larger in cold-formed steel construction than in heavy construction. This means that larger numbers of smaller diameter mechanical fasteners should be used in joining cold-formed sheet steel sections, although the general rules governing their placement are not unlike those of hot rolled structural steel. These general rules, however, are strongly subject to modification for behavior in particular cases. Sometimes it is necessary to conduct tests to determine the best type and placement of fasteners, although for commercially available products, this information is supplied by the manufacturer. Bolts are usually hex head and used with washers.

Screws

Self-tapping and self-drilling screws are important fasteners for cold-formed steel. They come in a variety of lengths, diameters, strengths and coatings, and their use should be in accordance with the manufacturer’s suggestions.

Self-drilling screws drill and tap their own hole and are used with mechanical drivers. Because these types of screws require no pre-drilled hole, they are useful where lineup of the parts being joined is accomplished through other means before joining.

These kinds of fasteners are used with steel framing systems for joining framing members to one another and for fastening sheathing material to the framing structure. For the latter job, there are many specialized types of screws, nails and staples. They are designed to anchor into both the framework and the sheathing. Special coatings such as cadmium, zinc and other metals provide longer fastener life.

Welding

Welding is widely used for joining cold-formed sheet steel parts. The two types of welds used are fusion and resistance. Fusion welding includes a group of weld types such as fillet welds, butt welds, plug welds and puddle welds, in which sheets are welded together by bringing them to the molten state at the surface to be joined by means of deposition of weld metal. Fusion welds are often used for erection, joining one cold-formed steel member to another or to hot-rolled framing members.

Resistance welding includes spot and projection welding. In this type of welding, coalescence is produced by the heat obtained from resistance to an electric current passed through the work parts, which are held together under pressure by electrodes. Resistance welding is used mostly for in-shop fabrication of cold-formed steel components.

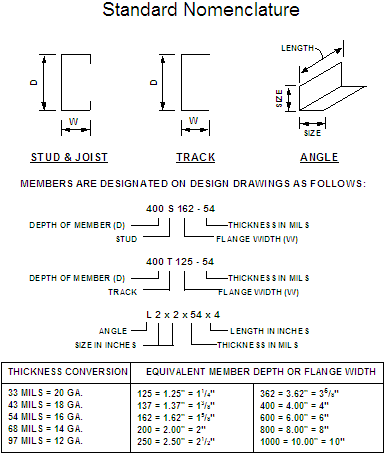

Industry Standard Nomenclature for Steel Studs and Tracks

For many years, steel stud manufacturers have used different in-house nomenclatures for their own products, which made it inconvenient for designers to specify the cold-formed steel stud products. In 1996, an industry standard nomenclature was introduced by two steel stud manufacturers associations. The standard nomenclature identifies cold-formed steel products by member size (both depth and flange width), style, and material thickness as follows:

Although the steel stud thickness can be as thin as 18 mils (25 gauge) for interior construction applications, the minimum material thickness shall be 33 mils (20 gauge) for any structural applications. In addition, a galvanized finish with a minimum G60 coating is recommended for most structural applications not exposed to weather. A heavy protective coating G90 should be considered for structural applications exposed to weather.

To help designers and contractors identify the material thickness of cold-formed steel products in the field, stud manufacturers usually paint one end of studs and tracks according to the following color coding table:

Table 1. Steel Gauge Identification by Color

Minimum Delivered Thickness (mils) Reference Gauge Number Color Code
18 or 27 25 or 22 None
33 20 White
43 18 Yellow
54 16 Green
68 14 Orange
97 12 Red

Special Considerations for Load-Bearing Studs

As more and more cold-formed steel studs are used in the load-bearing applications, a cold-formed steel designer needs to pay special attention to the unique characteristics of steel stud construction and to require better quality control during the construction. One of the most common problems with load-bearing stud construction is the gap at the top and bottom of steel studs. For lightly loaded studs, the connection between the stud and the track can be designed to carry the axial load without the direct bearing. For heavily loaded studs, load-bearing stud wall panels shall be fabricated in a plant where the gap between the stud and the track can be eliminated using a special pressing equipment.

When there is a significant axial load in the steel studs, horizontal cold-rolled steel channel bracing may not be sufficient to provide adequate bracing force to the heavy gauge steel studs. In this case, horizontal and diagonal steel strap bracing on each face of load-bearing stud walls should be considered. Another option is to introduce stand-alone box-sections so that each composite stud can function properly without relying on the horizontal bracing.

Unless adequate load distribution members are provided at each floor level, it is imperative for steel studs align vertically for direct load transfer from the top floor to the bottom floor. To allow certain construction tolerance, a designer may consider using heavy gauge tracks with 2- to 3-inch deep legs at the top and bottom of heavy load-bearing stud walls.

Design Methods

Much of the research and engineering knowledge about cold-formed steel design is available to you in the form of the American Iron and Steel Institute Cold-Formed Steel Design Manual. This publication, in allowable stress design and load and resistance factor design, include the Specification for the Design of Cold-Formed Steel Structural Members and its Commentary. The commentary helps the designer understand how the criteria were developed and gives references to the original sources. The Beam Design, Column Design and Connection Design parts provide various design examples, tables and charts for design use. The Design Manual also includes Supplementary Information and Test Procedures.

To order design related publications, please visit AISI Publications on the AISI website.

***

Course Summary

Cold-formed steel has been used more and more widely in the manufactured products and construction industry. Noticeable progress has been made in the areas of cold-formed roof trusses and load-bearing stud walls in the mid-rise buildings. It is important for engineers and architects to understand the standard nomenclature and unique characteristics of the cold-formed steel so that they can specify the cold-formed steel for the proper applications.

Related Links

For additional technical information related to this subject, please visit the following websites or web pages:

American Iron and Steel Institute
Center for Cold-Formed Steel Structures
Cold-Formed Steel Engineers Institute
Steel Stud Manufacturers Association


Quiz

Once you finish studying the above course content, you need to take a quiz to obtain the PDH credits.

Take a Quiz


DISCLAIMER: The materials contained in the online course are not intended as a representation or warranty on the part of PDHonline.com or any other person/organization named herein. The materials are for general information only. They are not a substitute for competent professional advice. Application of this information to a specific project should be reviewed by a registered professional engineer. Anyone making use of the information set forth herein does so at their own risk and assumes any and all resulting liability arising therefrom.
