Soil Erosion and Sediment Control

Course Outline

This three-hour online course provides general guidelines and practices to manage stormwater and erosion and sediment control (ESC) at construction sites and urban areas. The methods and techniques discussed cover surface stabilization, runoff and sediment control and stormwater protection management. Methods commonly used include earth berms, terraces and benches, surface grading, vegetation, erosion control blankets, diversion and drainage ditches, sedimentation basins and combinations of these systems. Streambank protection is not discussed here but some of the practices used for ESC may also be suitable for streambank protection. Remedial actions and activities performed at construction sites must comply with federal, state and local regulations to protect water quality.

This course includes a multiple-choice quiz at the end, which is designed to enhance the understanding of the course materials.

Learning Objective

At the conclusion of this course, the student will:

Understand the nature of soil erosion and the factors that influence erosion and sedimentation;
Be familiar with the design and construction of diversion practices including ditches and berms and their uses to control run off, sedimentation and other pollution from construction activities;
Understand the applications of land grading to reduce water ponding, erosion and to promote vegetation;
Be aware of the types of synthetic membranes and erosion control blankets along with their advantages and disadvantages and most beneficial uses for controlling erosion and sediment at construction sites;
Be familiar with design considerations for the establishment of site vegetation and in conjunction with various land grading methods;
Be familiar with the equipment and types of materials and plants used to establish vegetation;
Consider general precautionary measures employed for water control activities to protect workers and the environment;
Understand sediment control practices such as sediment basins and fences and straw bale checks and their requirements and limitations;
Be familiar with the benefits of slope breaks using diversions and benches to minimize soil erosion and sedimentation at construction sites; and
Understand storm water management with detention ponds and basins and their maintenance and construction requirements.

Intended Audience

This course is intended for civil engineers and planners.

Benefit to Attendees

The student will become familiar with methods and techniques used to manage surface drainage at construction sites. The purpose is to reduce erosion, water ponding and runoff of sediments and pollutants onto downslope land and downstream water or streams. Ground water and surface water can contain contaminants such as volatiles, soluble organics, corrosive acids and alkalis. The student will better understand the application of interception or diversion methods such as ditches, berms, down pipes, flumes, terraces and benches and sediment and detention basins. Practices for surface stabilization are discussed and include synthetic membranes, vegetation, and land grading and soil bioengineering for slope protection. Basic guidance in the selection of the most appropriate practice to use and their advantages and disadvantages are discussed. A diagram displaying a matrix for selecting erosion and sediment control practices in developing areas is presented.

Course Introduction

This course covers the practices commonly used to manage the movement of storm water and sediments at construction sites. Early soil conservation efforts were driven by the wind erosion occurring during the "dirty thirties". These first measures were aimed at soil conservation but as land development increased, runoff erosion and sedimentation became issues also. Remedial actions consist of site control to prevent off-site migration of surface water, sediments and contaminants. Land disturbed by construction activities requires precautionary measures to reduce soil erosion and sedimentation. A construction site must be investigated for a wide range of conditions, including ground water level, surface drainage and subsurface ground conditions.

Sediments contain not only soil particles but also pollutants like petroleum products, metals, chemicals, pesticides and organics. Measures for erosion and sediment control (ESC) are necessary to protect property, waterways and wildlife habitat. Based on volume, sediment from erosion may be a larger pollutant of streams, rivers and lakes than toxic waste or chemicals. In cases where the National Pollutant Discharge Elimination System (NPDES) for stormwater permits applies, a Stormwater Pollution Prevent Plan (SPPP) is required for construction sites. A SPPP will specify the control measures and deadlines to meet at a construction site. State and local governments also have ESC regulations that require special precautions for land-disturbing activities. Soil erosion can be accelerated when ESC plans have not been prepared for land disturbing projects.

Soil Erosion Causes

Erosion occurs naturally and is accelerated by the following processes:

Land Development and Land Use Changes. Increased urbanization, more roofs, paving and clearing of woodland and grassland without proper conservation management create erodible land areas, speed up runoff and remove areas available for rainfall infiltration. Vegetation removal from land area will further accelerate erosion and siltation.

Overbank Drainage and Groundwater Seepage. Overland stormwater drainage or runoff can severely erode unprotected slopes during runoff. Rainfall that does not runoff may seep downward through the soil resulting in a loss in shear strength. This condition may appear as wetness or piping flow down the slope. Clay soils swell and lose shear strength after absorbing surface and groundwater, resulting in creep or soil movement.

Management and Protection Practices

Management practices include overland flow diversion and perimeter protection of a site with earth berms and ditches, terraces, temporary swales, vegetation and by controlling development along fills. Structural methods include riprap, cellular mattresses, earth berms, sediment fences, straw bale traps and sediment basins.

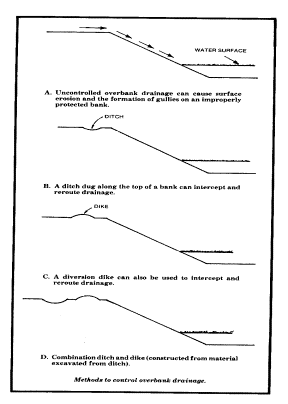

Diversion Ditches and Berms - Runoff erosion of slopes can be reduced by intercepting and diverting water away from the top of slope with diversion ditching, diversion berms or a combination of both. They can be used to protect newly graded slopes until vegetation is established. Diversion ditches can be constructed across slopes to reduce the length of slope exposed to erosion, intercept flow at the top of slope or to convey stormwater at the slope base. The fill for berms is usually provided from the ditch excavation. It may be necessary to temporarily place straw-bale check dams at 50 to 100 foot intervals in the ditches for erosion protection. The ditches may be seeded and mulched or sodded or for long-term erosion protection, stabilized with riprap, asphalt concrete, concrete etc. or by any combination of these. The diverted runoff should be discharged into a stable area through pipes or ditches lined with riprap, portland cement concrete etc. for erosion protection. (See Fig 1)

Fig 1

Grading and Bench Terraces - Slopes that are too steep can be reshaped by grading the slope. It is more feasible to terrace slopes for small reaches. Terracing slows rainfall and runoff by breaking the gradient of long steep slopes in steps. Ditching on a bench terrace may not be necessary since the benches are constructed to typically slope inward toward the top of slope in order to divert runoff water along the bench rather than down the slope. Vegetation is then more easily established and maintained.

Swales - Swales are used in a similar fashion, as ditches but do not block traffic as ditches due to their wider and shallower channel cross section. A wider and shallower cross section reduces the stormwater velocity and potential for erosion. A wider but shallower trapezoidal channel compared with a v-ditch of equal area for instance will be shown to have a lower velocity of flow. Grassed swales also promote infiltration and help to remove sediments. The construction and maintenance of swales and ditches are similar.

Temporary Slope Drains, Flumes and Down Pipes - Flumes and downpipes are temporary structures used to carry concentrated flows down the face of a slope without erosive damage. Flumes are open channels lines with an erosive resistant material such as concrete, grouted riprap etc. Downpipes are made of corrugated plastic or metal. They have standard entrance sections and like flumes discharge to outlets stabilized with riprap aprons or sediment traps. The advantage of both practices includes prevention of erosion on steep slopes and they do not require special equipment or materials. They are intended for temporary erosion control until a slope is stabilized with vegetation and/or practices.

Straw Bale Traps or Check Dams - Use of straw bales like sediment fences is limited to small drainage areas of about two acres and is intended to intercept and detain small amounts of sediments. Straw bale traps however can be located across small swales. For large drainage areas and swales, which have concentrated flows, rock dams or sediment basins are more suitable. Erosion will occur around or under the bales at adverse sites with steep slopes. Installation of straw bales is similar to the requirements of sediment fences. The bales should be entrenched at least four inches or backfilled with compacted soil and anchored with stakes. A stabilized bypass should be considered for sites with large stormwater flows to protect the integrity of the straw bale trap.

Vegetation - Site specific conditions must be considered to use vegetation. Success of vegetation depends on the climate characteristics, slope grades, site preparation and compatibility of vegetation with these conditions. Vegetation is one of the most commonly used methods for stabilization. It is relatively easy to maintain and establish and properly selected plants and grasses are self-maintaining. Erosion control matting may be necessary to hold the seed and soil in place until the vegetation is established. Slopes flatter than 1V to 1 ½ H can accommodate vegetation but slopes flatter than 1V on 2H or 3H are preferable especially for ease and safety in maintenance.

Vegetation protects a slope with the roots and exposed branches, stems. Surface flow velocity is reduced and the capacity for infiltration and water withdrawal from the soils is increased. Seedbed preparation, fertilizers, planting dates, rates of application and type of grasses will depend on the region, specific area for planting, time of year and as specified in the design plans. Also there are temporary and permanent plantings. Permanent seeding is typically for periods longer than 12 months with perennial grasses. Nurse crops are sometimes uses in the seeding mix. Annuals such as wheat or rye provide winter protection for the permanent grasses to become established and help in controlling weeds.

Soil Bioengineering - Woody vegetation is used for slope protection and slide repairs and usually provides greater slope protection than grasses alone. The woody vegetation can also be combined with a structural system, concrete block or 3-dimensional synthetic grids on steep slopes. The structure allows immediate slope protection and time for the vegetation to become established. Woody vegetation practices are well suited for areas with limited access for equipment and for short reaches with steep slopes.

Riprap - There are several ways to place riprap. It can be mechanically placed along the slope or in wire baskets as a blanket over the slope. Riprap mattresses are relatively flexible and can adjust as changes from settlement or erosion occur. Minor damage can be easily repaired with additional stone to fill settlement or voids from erosion. A rule of thumb for mattress thickness is 1.5 times the thickness of the largest stone being used. Filter fabric or a drainage material is usually placed as an underlayment to protect from loss of fine soils and to allow for water seepage under the riprap.

Temporary Gravel Entrance/Exit - A gravel entrance/exit pad provides a stable entrance and exit for the construction site and helps to keep mud from being tracked on to public roads. The gravel pad is constructed of 2-3 inch stone at least six inches thick and usually 50 feet long. If wetness or soft soil conditions are problems, geotextile fabric may be placed to stabilize the foundation of the entrance/exit pad.

Course Content

This course is based primarily on Chapters 2, 4 and 6 (selected sections) from the Missouri Department of Natural Resources Manual, "Protecting Water Quality", a guide to erosion, sediment and stormwater best management practices (BMP) for development sites, (2011 Edition, 86 pages), PDF file and the Course Introduction paragraph.

The link to the MoDNR Manual is "Protecting Water Quality", Chapters 2, 4 and 6 (selected sections):

MoDNR 18.opd

The Table of Contents and Introduction are in:

MoDNR 18.toc

You need to open or download above documents to study this course.

Course Summary

State and federal regulations have to be complied with at construction sites in order to remove any threat to public health or the environment. This course considers the techniques and methods used to manage stormwater, the control of run-on and run-off and the control of soil erosion and sediment at construction sites to protect water quality. The general categories include surface stabilization and runoff and sediment control. Among the methods considered include ditches, berms, flumes, terraces and benches and sediment basins. The design, installation, type of materials, advantage and disadvantages and the effects of the physical site condition are also considered. Methods for collecting and removing surface water and diversion of surface runoff water from construction sites are presented.

Stormwater can carry soil sediments as well as pollutants such as volatiles, soluble organics, corrosive acids and alkalis. Environmental risks are mismanagement of stormwater drainage and migration of pollutants and runoff erosion which can contaminate the soil, groundwater, water wells and nearby surface water and streams unless properly managed.
